Laser Welded Diamond Drill Bit with Protective Body for General Purpose

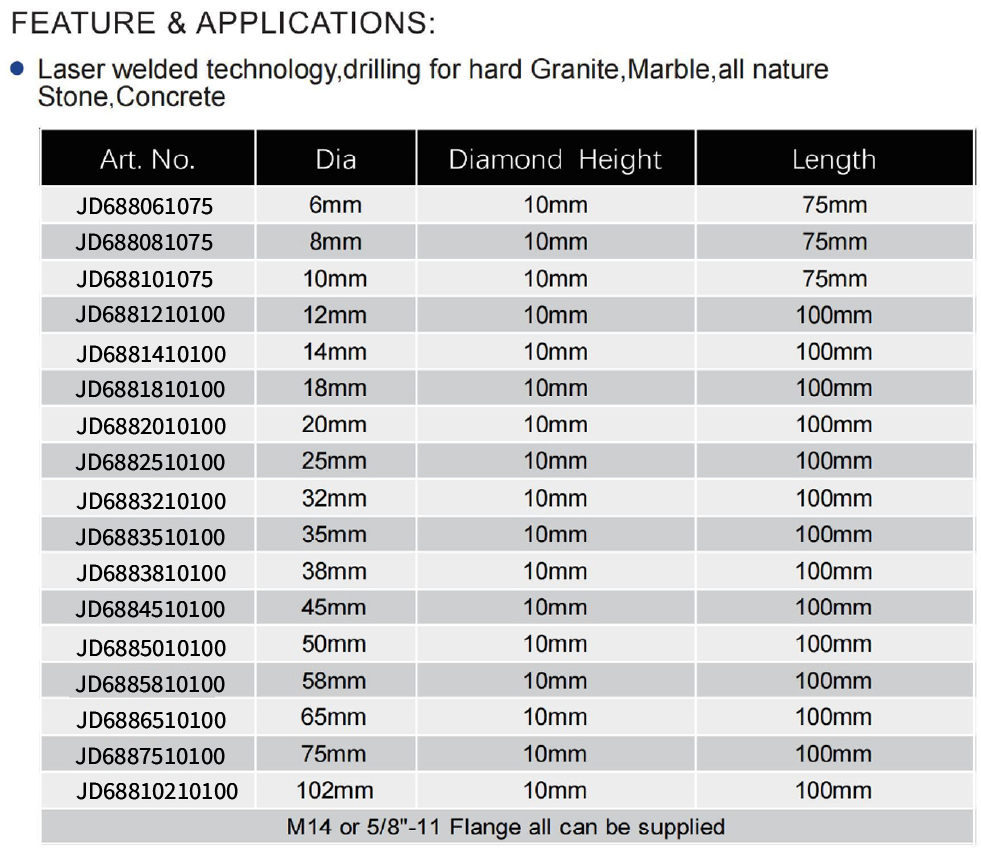

This product series comprises laser-welded diamond drill bits with protective bodies designed for general-purpose drilling in hard materials. The range includes multiple models (JD688061075, JD688081075, JD688101075, JD6881210100, JD6881410100, JD6881810100, JD6882010100, JD6882510100, JD6883210100, JD6883510100, JD6883810100, JD6884510100, JD6885010100, JD6885810100, JD6886510100, JD6887510100, JD68810210100) with diameters from 6mm to 102mm, a consistent diamond height of 10mm, and lengths of 75mm or 100mm. It features compatible M14 or 5/8″-11 flanges for easy attachment to drilling machines, catering to diverse drilling depth and precision needs.

a. Product Features and Advantages:

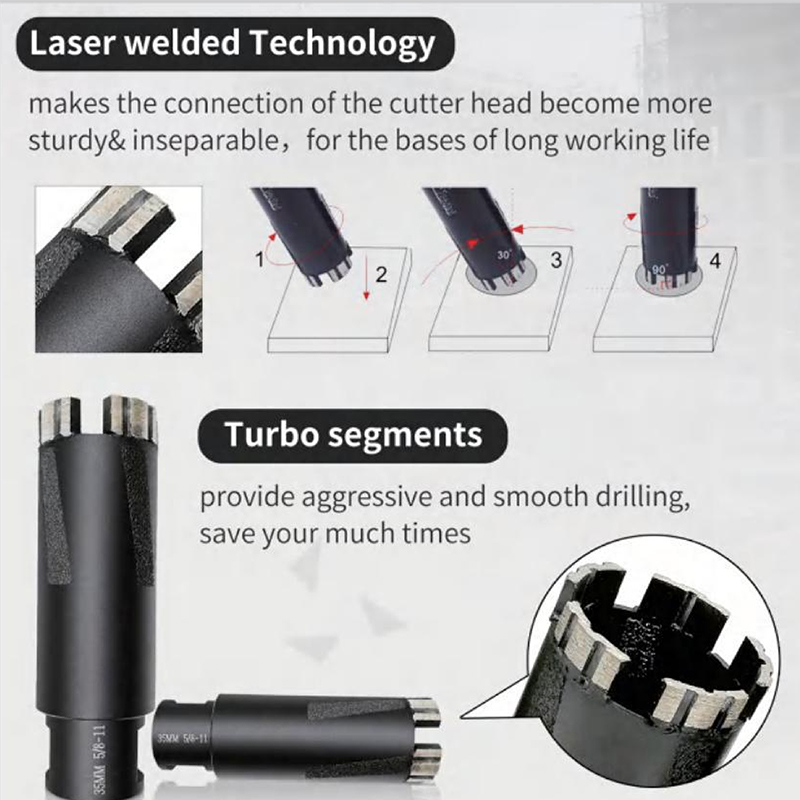

• Laser Welding Technology: Ensures a strong bond between diamond segments and the drill bit body, significantly enhancing durability and resistance to wear during high-intensity drilling.
• Protective Body & Coating: Equipped with a black protective coating along the shaft and an encasing protective body, reducing injury risks when not in use while improving overall durability and safety.
• Consistent Diamond Height: All models maintain a uniform diamond height of 10mm, delivering stable cutting performance and predictable material removal rates.
• Segmented Diamond Cutting Edge: Features a segmented design with dense diamond grits at the working end, optimized for efficient drilling through hard materials like concrete, stone, and tile.

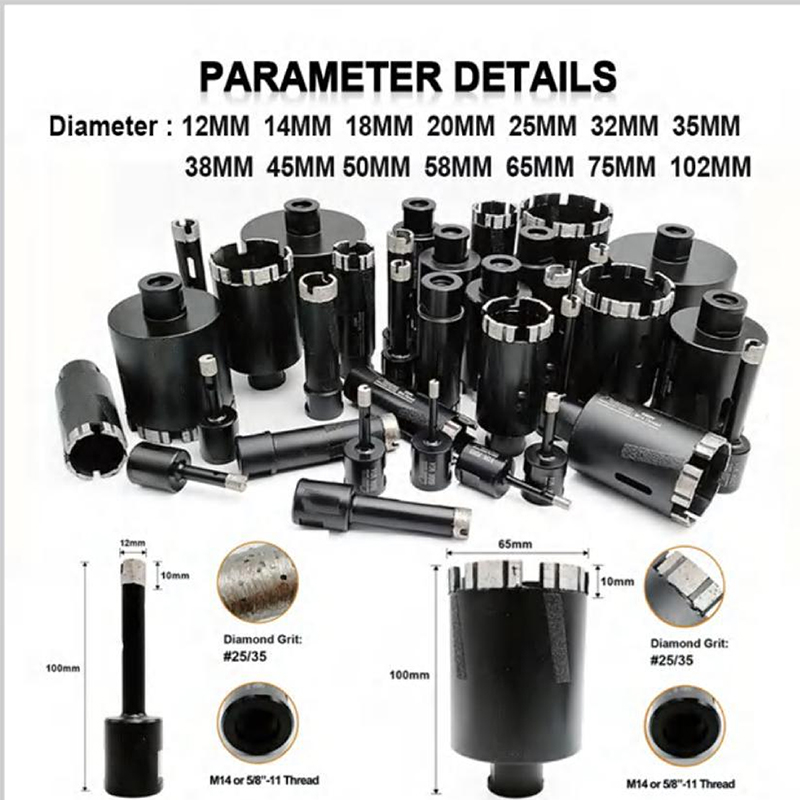

• Multiple Size Options: Offers a wide diameter range (6mm–102mm) and two length specifications (75mm/100mm) to suit various drilling depth requirements.
• Compatible Flanges & Shank: Supports M14 or 5/8″-11 flanges for machine attachment and includes a standard shank compatible with most rotary drills, ensuring broad equipment adaptability.
• Safety & Functionality Focus: The protective body and ergonomic design balance operational efficiency with user safety, minimizing hazards in construction and renovation tasks.

b. Product Applications:

Ideal for professional and DIY projects involving drilling holes in hard materials including granite, marble, natural stone, concrete, and tile. Suitable for installations such as anchor bolts, pipes, and fixtures in construction, stone processing, and renovation scenarios.
