High Frequency Welded PCD Grinding Cup Wheel for Epoxy Floor

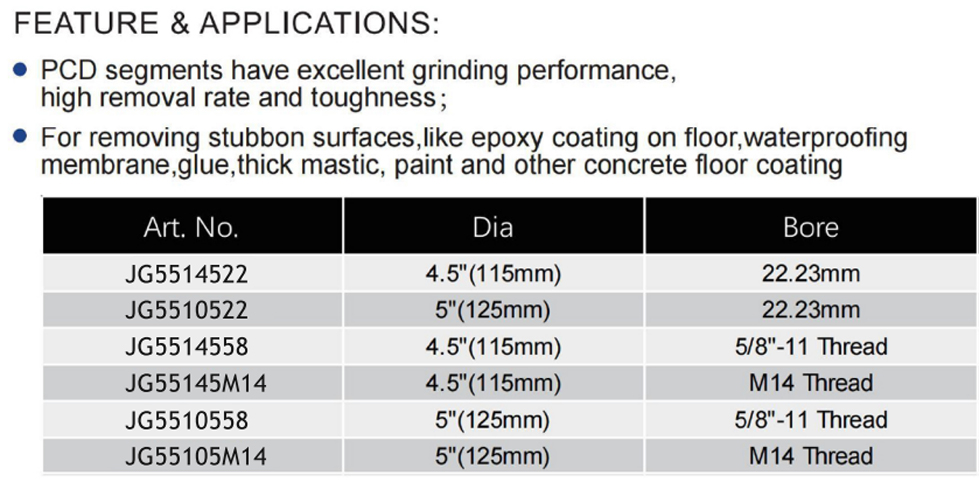

This product series comprises high-frequency welded PCD grinding cup wheels designed for epoxy floor removal and processing of stubborn hard surfaces. The range includes multiple models (JG5514522, JG5510522, JG5514558, JG55145M14, JG5510558, JG55105M14) with diameters of 4.5″(115mm) and 5″(125mm), and bore types including 22.23mm, 5/8”-11 Thread, and M14 Thread, catering to diverse equipment compatibility and grinding depth requirements.

a. Product Features and Advantages:

High-Frequency Welding Process: Ensures firm bonding of PCD segments to the wheel matrix via high-frequency welding, enhancing structural stability and durability for heavy-duty grinding.

PCD Segments Performance: Features PCD (Polycrystalline Diamond) segments with excellent grinding performance, high material removal rate, and superior toughness, enabling efficient processing of tough coatings.

Optimized Structural Design: Adopts a robust black construction with 8 evenly spaced large circular holes in the central area for efficient debris extraction; outer working edge equipped with 8 equidistant small rectangular segments containing PCD abrasive elements for targeted cutting.

Clear Specification Identification: Marked with key parameters (e.g., diameter “5””, arbor size “M14”, grit size “125MM” referring to PCD mesh size) for easy model selection and application matching.

Multiple Model Adaptability: Offers 6 models with varied diameters (4.5″/5″) and bore types (22.23mm, 5/8”-11 Thread, M14 Thread) to suit different angle grinders and grinding depth needs.

b. Product Applications:

Ideal for removing stubborn surfaces including epoxy coating on floors, waterproofing membranes, glue, thick mastic, paint, and other concrete floor coatings. Suitable for aggressive grinding tasks in epoxy flooring preparation or finishing, as well as general hard surface processing in construction and renovation projects.
